Acceptable File Formats.
Files should be created in CorelDraw (saving up to version 19) or in AutoCAD, Adobe Illustrator programs.
Allowed formats: *.ai, *.dxf;
these file formats are possible with prior agreement: *.png, *.jpeg, *.svg, *.tiff, *.pdf.
*we do not guarantee same-day dispatch of the order if a file in a non-vector format has been added
Requirements for the Design:
- the text in the file must be converted into curves without an outline; all curves of the object must be closed (the closure of vectors is checked by filling the object with color);
- intersection, overlapping of layers, double lines, as well as open points in closed contours are unfortunately not permissible;
- when forming an object, you cannot use the thickness of the lines;
- the permissible thickness of curves is “0” or ultra-thin “Hardline.”
- the scale in the design should be 1:1. The unit of measurement is millimeters (mm). The text in the design should be proportional to the blank;
- the design should not have a white background;
- The minimum size of the object for engraving is 1x1 mm.

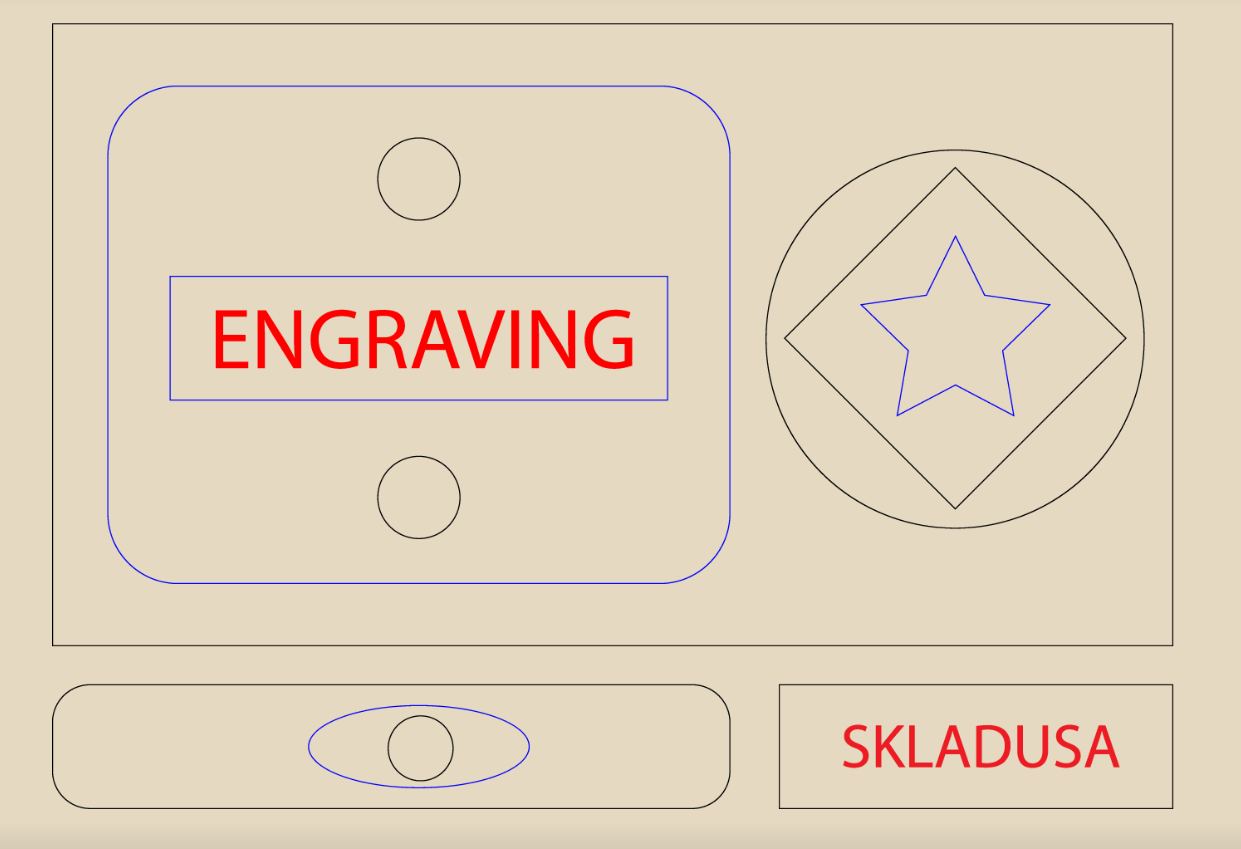

Example of a Layout for Engraving:
- solid line of engraving is indicated by a red line;
- blue line indicates contour engraving;
- black line marks the boundaries of the blank.

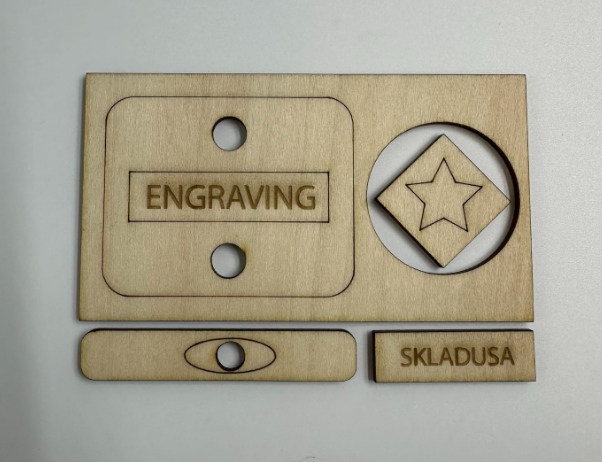

Laser engraving result
Pay attention!
Failure to meet the specified file requirements may affect the quality of engraving. Additionally, layout adjustments may be necessary for engraving, resulting in increased service costs and extended dispatch times.
